Aramis

optical 3D deformation measuring system

Aramis 5M

• resolution 2448x2050 px
• lens

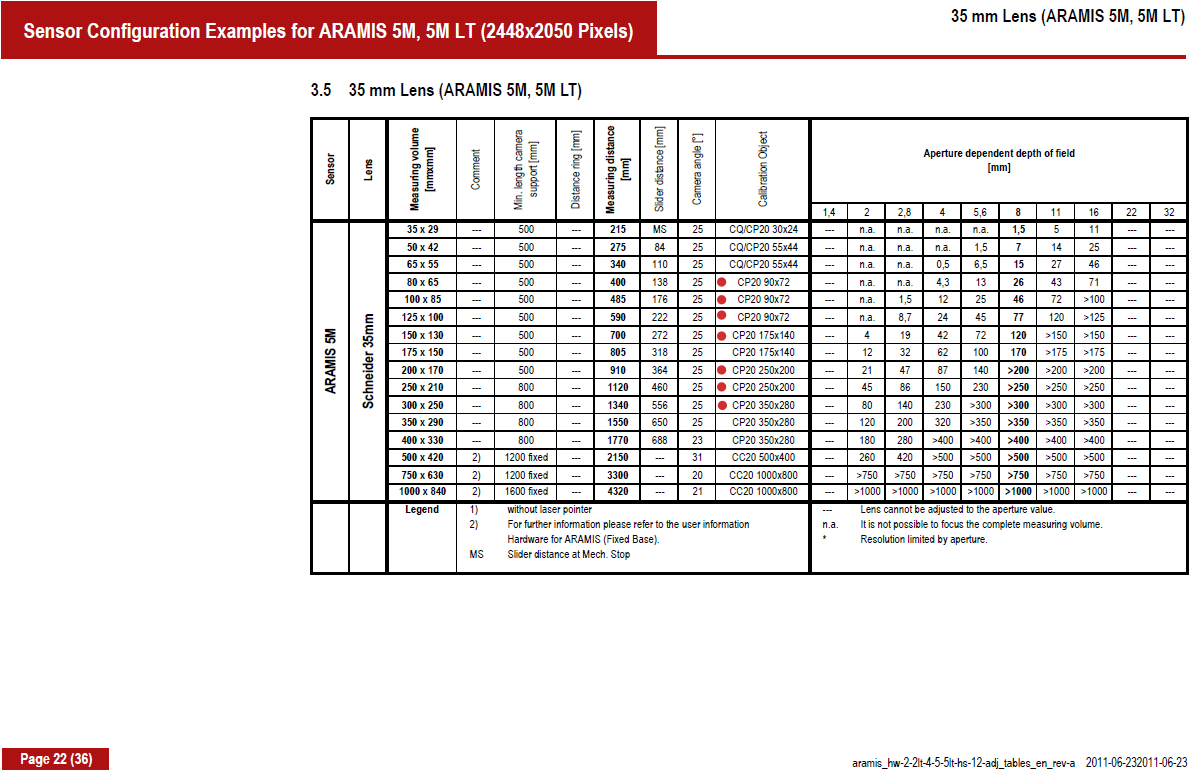

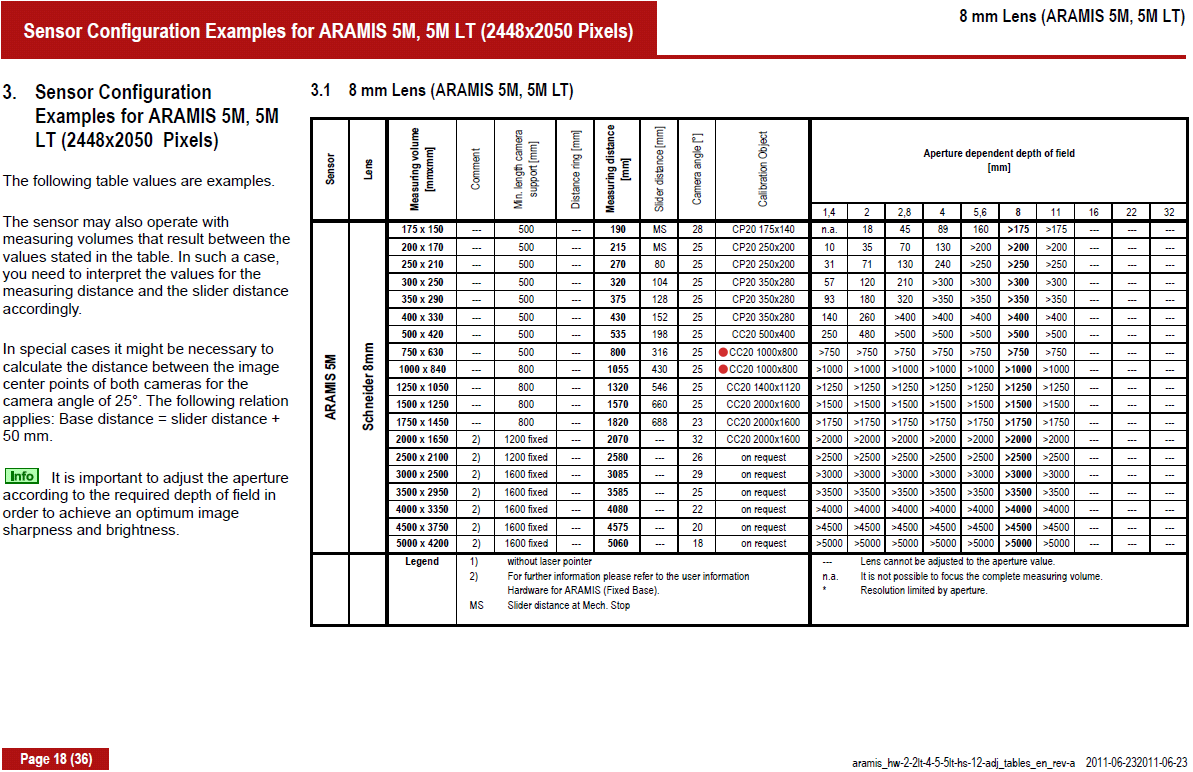

  • 8 mm a 35 mm
• calibration panels/crosses
  1. panel CP20/90
  2. panel CP20/250
  3. cross CC20/700 1000x800
• measuring volume [mm x mm]
  1. 80x65, 100x85, 125x100, 150x130
  2. 200x170, 250x210, 300x250
• speed limits
  • 1 - 172800 s, 5000 images
  • max 16 img per sec, cca 500 image
  • manual trigger

Cooperation opportunities for other institutions

• measuring of surface deformations using Aramis 3D
• analysis and export of measured data
• tools for postprocessing
• consulting and training

Contact

prof. Ing. Miroslav Vořechovský, Ph.D.
Institute of Structural Mechanics
Faculty of Civil Engineering
Brno University of Technology
Veveří 95
602 00 Brno,
Czech Republic

Phone: +420 5 4114 7370
E-mail: vorechovsky.m@fce.vutbr.cz
